WasteAway 270l-1100
WasteAway 270l-1100
All systems are New Zealand made and assembled
Share
Plus Freight Costs
Plus Freight Costs
Residential - $199.00
Rural - $249.00
Couldn't load pickup availability

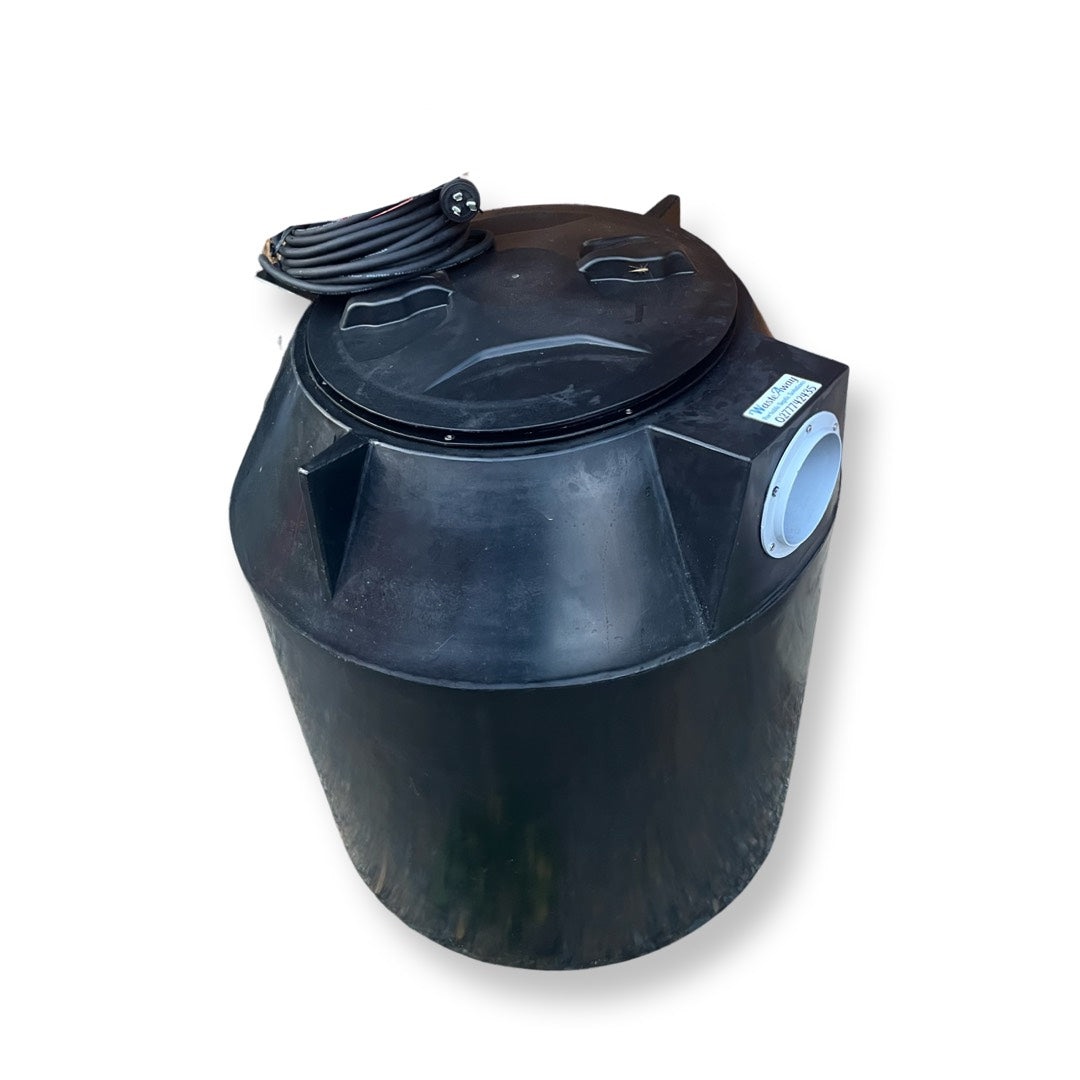

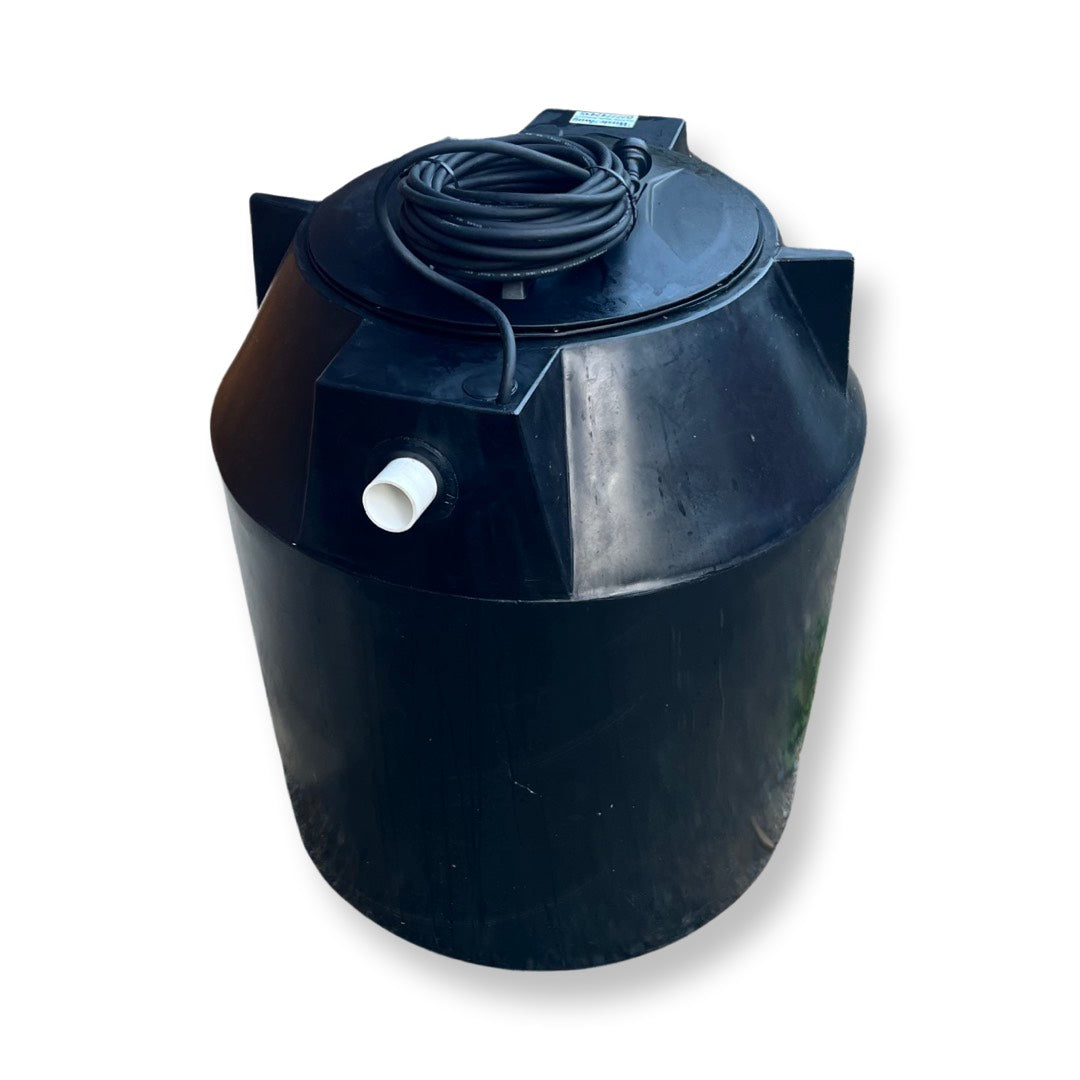

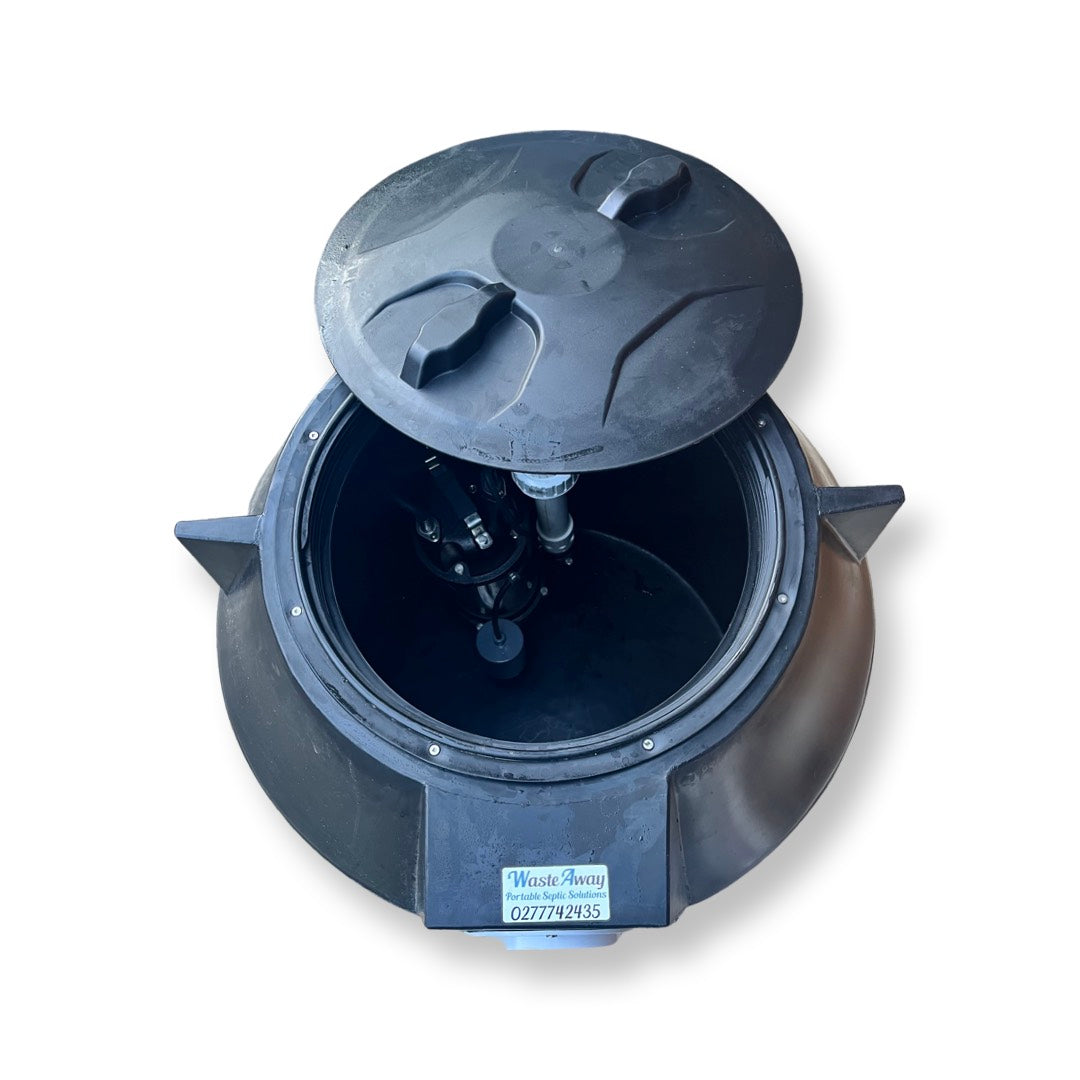

The WasteAway 270l wastewater tank is designed for in-ground installation and comes standard with a 1100w Macerator Pump.
The submersible cutter pumps are designed for pumping sewage and soiled waste waters. Fitted with a double edge tungsten cutter and high abrasive-resistance impeller they are ideal for pumping septic water from domestic dwellings.
We can also build the tanks with different pump options to suit your needs.
Freight anywhere in New Zealand
Residential - $199.00
Rural - $249.00
Warranty
Tank - 20 year back to base
Pump - 2 Year back to base
Get in touch with us today to discuss your options
Specifications
| Tank capacity | 270 litre |
| Tank dimensions | h790mm x d710mm |
| Pump | 1100w Macerator |
| Flow Rate | 37,200 Litres/Hour |
| Pumps | 250m horizontally or 15m vertically |
| Pump voltage | 240v |
| Inlet (to the tank) | 100mm |
| Inspection hatch | 450mm |
| Tank outlet (from the pump) | 40mm |
| Lead Length | 15m |
WARNING
You must not flush excess grease and fat or sanitary products like baby wipes or tampons down the drain as it will block and potentially damage the pump voiding the warranty.
Note- Please check with your local council or wastewater engineer before purchasing.
270l WasteAway System Installation
How to bury the tank
Our 270l tanks can be either partially or completely buried below ground. Your 270l WasteAway wastewater tank is manufactured to specifications that allow it to be completely buried with up to 150mm of material above the manhole cover. Please read the following instructions before installation.
-
It is recommended that the septic tank be kept upright during transportation, to stop any of the pipework from moving.
-
Dig a hole for the wastewater tank, large enough for the tank to be placed in the hole with room for access to the inlet/outlet pipe connections and a minimum of 150mm around the diameter of the tank for clean backfill material.
-
Ensure that the base of the hole is level. Lay quarry dust or sand in the base of the hole 50-100mm thick.
-
Attach the inlet and outlet piping to the tank pipe fitting and glue them into place.
-
Backfill/bury tank with sand. Do not use rocks, stony material or heavy clay.
If the tank is to be buried more than 150mm, it is recommended to lay 50mm thick ground retention treated timbers over the tank supported by the ground each side of the tank before filling. This will ensure the tank dome is protected from excessive weight. Back fill with clean light material.
If in doubt please don't hesitate to contact Ross on 027 774 2435
